C Series Furances
Residential high-efficiency coal burning furnaces
C Series Specs
Functionality You Will Love

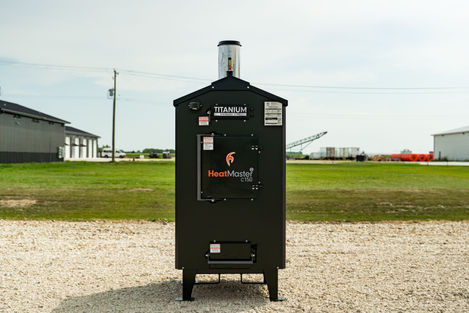

C150
-
Approx. Heating Space* - 3,000sq. ft.
-
Maximum BTU’s** - 150,000/hr
-
Water Capacity (US Gallons) - 60 gallons
-
Weight - 950 lbs
-
Outlets - 1 set of 1” feed and return
-
Chimney Size - 6”
-
Firebox (L” x W” x H”) - 28 x 24 x 32
-
Firebox Door (L” x W” x H”) - 16 x 18
-
Dimensions*** (L” x W” x H”) - 52 x 36 x 78
C375
-
Approx. Heating Space* - 7,500sq. ft.
-
Maximum BTU’s** - 375,000/hr
-
Water Capacity (US Gallons) - 180 gallons
-
Weight - 1,700 lbs
-
Chimney Size - 6”
-
Outlets - 2 sets of 1 -1.5” feeds and returns
-
Firebox (L” x W” x H”) - 46 x 34 x 40
-
Firebox Door (L” x W” x H”) - 24 x 24
-
Dimensions*** (L” x W” x H”) - 69 x 49 x 89
C250
-
Approx. Heating Space* - 5,000sq. ft.
-
Maximum BTU’s** - 250,000/hr
-
Water Capacity (US Gallons) - 125 gallons
-
Outlets - 2 sets of 1” feeds and returns
-
Weight - 1,300 lbs
-
Chimney Size - 6″
-
Firebox (L” x W” x H”) - 34 x 31 x 38
-
Firebox Door (L” x W” x H”) - 20 x 20
-
Dimensions*** (L” x W” x H”) - 56 x 49 x 84
C500
-
Approx. Heating Space* - 10,000sq. ft.
-
Maximum BTU’s** - 500,000/hr
-
Water Capacity (US Gallons) - 230 gallons
-
Weight (lbs) - 2,000
-
Outlets - 2 sets of 1.5” feeds and returns
-
Chimney Size - 8″
-
Firebox (L” x W” x H”) - 56 x 34 x 42
-
Firebox Door (L” x W” x H”) - 24 x 24
-
Dimensions*** (L” x W” x H”) - 81 x 51 x 93
C800
-
Approx. Heating Space* - 20,000sq. ft.
-
Maximum BTU’s** - 800,000/hr
-
Water Capacity (US Gallons) - 555 gallons
-
Weight (lbs) - 4,000
-
Outlets - 4 sets of 1.5” feeds and returns
-
Chimney Size - 10”
-
Firebox (L” x W” x H”) - 60 x 52 x 52
-
Firebox Door (L” x W” x H”) - 42 x 30
-
Dimensions*** (L” x W” x H”) - 98 x 82 x 100
* Well-insulated building.
** BTU’s are approximate and will vary depending on fuel quality.
*** Height of the furnace is to the top of the lift hook.
